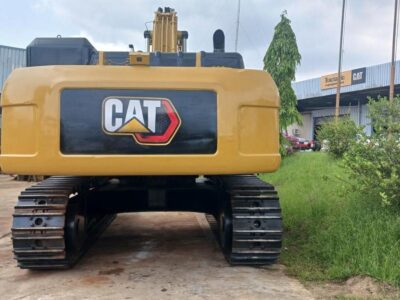

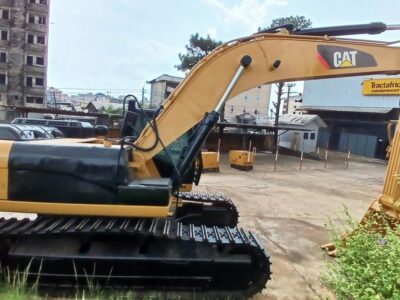

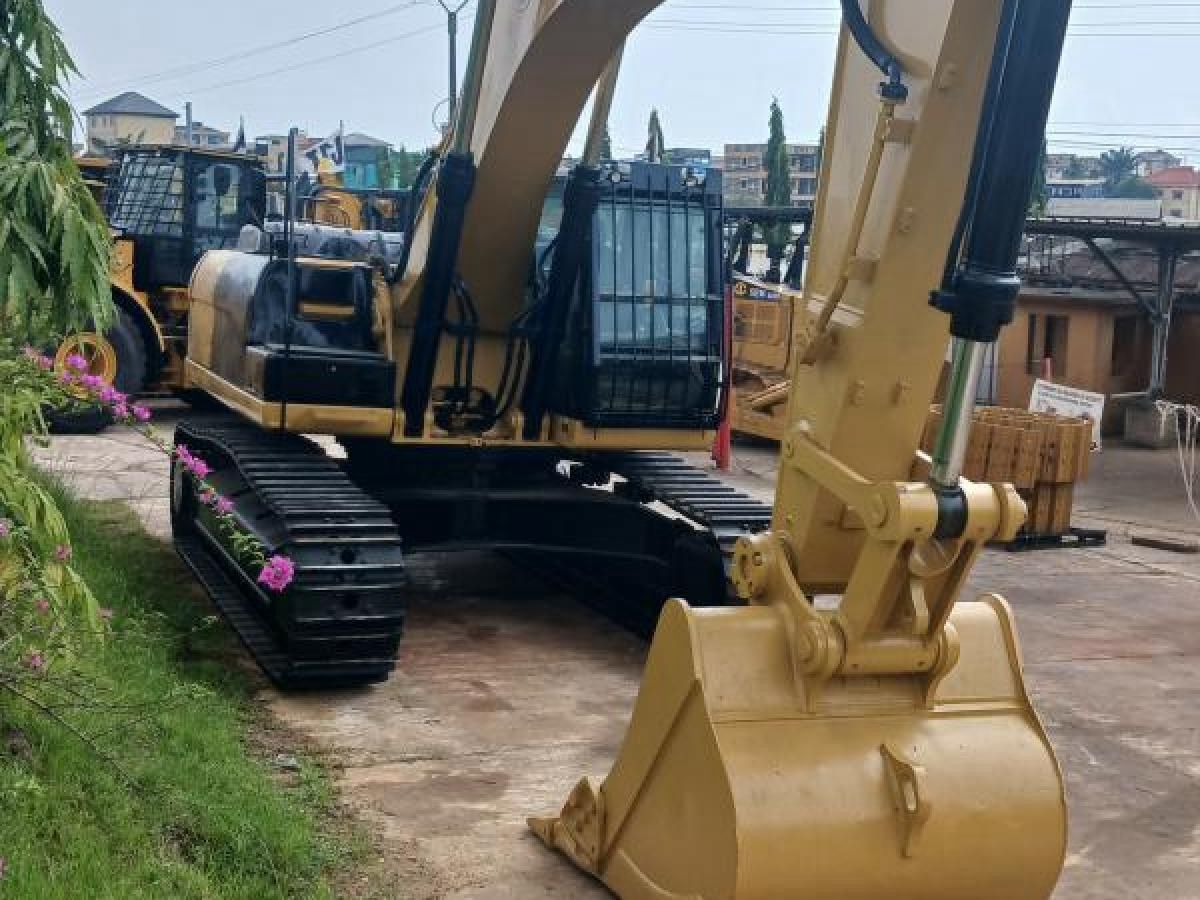

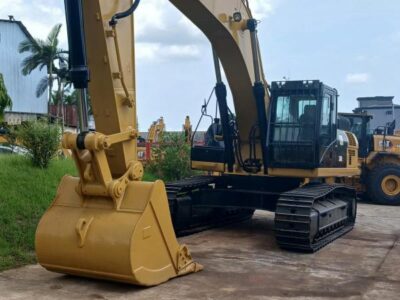

CAT Excavators 336D2 2017

ENGINE

• • Net Power – ISO 9249195 kW
  • Engine Power – ISO 14396195 kW
  • Engine ModelC7.1 Cat
  • Bore105 mm
  • Stroke135 mm
  • Displacement7.1 l
  • • Main Hydraulic Circuit: Maximum Flow559 l/min (148 US gal/min)
    • • Swing Speed8.74 RPM
    • • BoomStandard 6.5 m (21’4″)
      • ArmStandard 3.2 m (10’6″)
      • BucketHD 1.88 m³ (2.46 yd³)
      • Shipping Height: Cab Top3170 mm
      • Handrail Height3160 mm
      • Counterweight Ground Clearance1250 mm
      • Ground Clearance510 mm
      • Track Width2590 mm
    • WORKING RANGES AND FORCES
    • • Maximum Digging Depth7520 mm
      • BoomStandard 6.5 m (21’4″)
      • ArmStandard 3.2 m (10’6″)
      • BucketHD 1.88 m³ (2.46 yd³)
      • Maximum Loading Height7080 mm
      • Minimum Loading Height2580 mm
      • Maximum Cutting Depth for 8 ft Flat Bottom7360 mm
